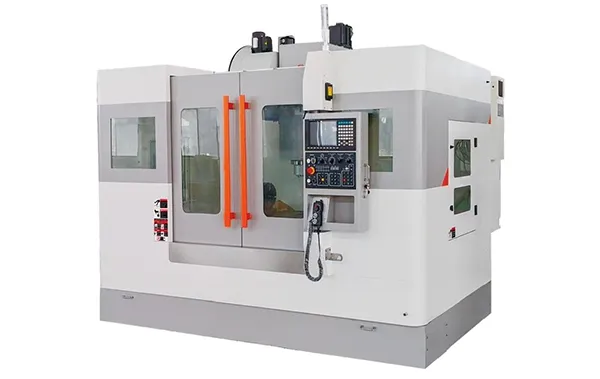

| Parameter | VMC1370 | |
| Work area | X/ Y/ Z axis travel | 1300/ 700/700mm |
| Spindle nose to table | 110-810mm/75-775mm | |
| Spindle center to column | 750mm | |
| Table data | Table size | 700x1400mm |
T shaft groove(WxQtyxPitch) | 18mmx5x110mm | |
Max table load | 1200kg | |
| Spindle | Spindle taper | BT40Φ150mm/BT50Φ155mm |
| Spindle Speed | 8000 | |
| Drive mode | Belt皮帶 | |
| Feed | X/Y/Z Axis rapid traverse | 24/ 24/ 24m/min |
| X/Y/Z Ball screw (Diaxpitch) | 40x12 | |
| X/Y/Z Linear guide rail STD | 45/45(四軌four rails)/45 | |
| X/Y/Z Axis cutting feed rate | 10 m/min | |
| Positioning accuracy(ISO) | 0.008 | |
| Re-Positioning accuracy (ISO) | 0.006 | |
| Tool magazine | Tool Magazine form | 圓盤DISC |
| Tool Mag capacity&shank | 24 Pcs /BT40 | |
| Max tool diameter (full) | 78mm | |
| Max tool diameter (not full) | 120mm | |
| Max,tool length | 300 mm | |
| Max,tool weight | 8 Kg | |
| Motor | Spindle motor | BIP15/8000 |
| X/Y/Z Axis motor torque | BISC22/BISC22/BISC22 | |
| Power capacity | 30kw | |
| Coolant pump | 450w | |
| Lubriation pump | 20 KVA | |
| Packing&others | Air pressure required | 6 kgf / cm2 |
| Machine dimensions(LxWxH) | 3600x2900x2750mm | |
| Machine weight | 10000kg | |
| Standard ACC. | Optional ACC. |
| X/Y/Z Linear guide rail(Taiwan) | Fanuc，Mitsubishi, Siemens controller system etc. |
| Integral shield | Tiled chain chip conveyor |
| Triaxial slideway telescopic protective cover | Spiral chip conveyor |
| Tool box and adjustable tool | X/Y Linear guide rail(Taiwan)Z Axis Rigid rail |
| Machine alarm system | Automatic tool measuring |
| Tool air-liquid cooling system | The fourth Axis |
| Penumatic tool changing system | Oil-mist collector |
| Machine tool working lamp | Oil-water separating installation |
| Heat exchanger | Lateral punching device |
| Transformer | |
| CNC controller system | |
| Spindle oil cooler | |
| Tool magazine | |
| Rigid tapping | |
| Horizontal adjustment screw and block | |
| Automatic lubrication device | |
| Electronic handle wheel | |
| Network synchronous processing | |
| Air pressure detection |
