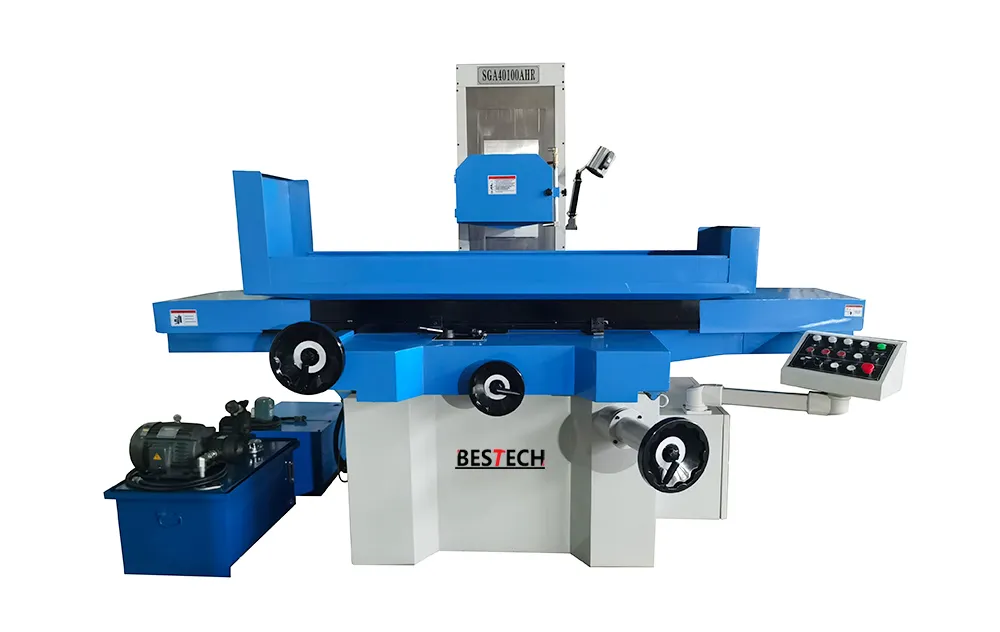

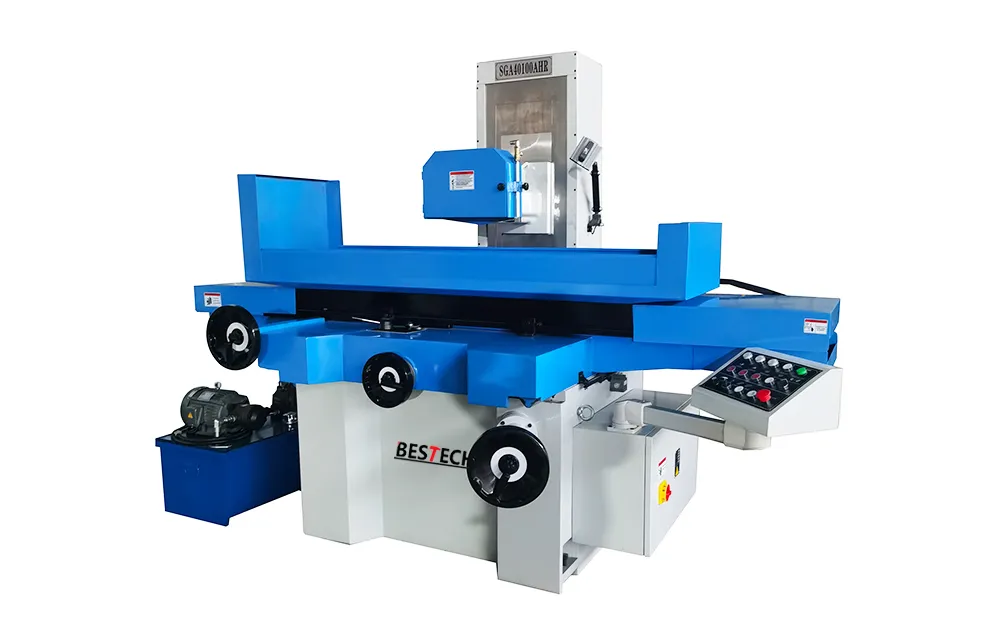

| Model / Description | Unit | SGA40100AHR | |
| Table size(W×L) | mm | 406×1020 | |
| Max.longitudinal travel | mm | 1130 | |
| Cross tranal | mm | 450 | |
| Max.distance from spindle center to table | mm | 580 | |
| Magnetic chuck size | mm | 400×1000 | |
| Speed of table longitudinal movement | m/min | 7~23 | |
| Table transverse movement | Auto feed | mm/min | 0.1~8 |
| Rapid speed | m/min | 990 | |
Feed of handwheel | mm/div. | 0.02 | |
| Wheelhead vertical movement | Auto feed | mm/stroke | ———（H/R mode）0.005/0.01/0.02/0.03/0.04/0.05(Only for D model) |
| Rapid speed | mm/min | ———（H mode）610 (Only for R model) 480 (Only for D model) | |
| Feed of handwheel | mm/div. | 0.005 | |
| Grinding wheel | Speed | rpm | 50Hz 1450 60Hz 1750 |
| (OD×W×ID)Size | mm | 350×40×127 | |
| Spindle Motor | KW | 4/5.5 | |
| Hydranlic Motor | KW | 2.2 | |
| Cooling pump motor | KW | 0.125 | |
| Elevating Motor | KW | ———（H mode）0.25 (R mode) 0.5 (D mode,servo motor) | |
| Cross feed motor | KW | 0.04 | |
| Max.loading capacity of table(include magnetic chuck) | kg | 600 | |
| Total rated power | KW | 7.5/9 | |
| Height of machine | mm | 1890 | |
| Floor space(L×W) | mm | 4400*2400 | |
| Gross weight | kg | 3900 | |
| Package dimensions(L×W×H) | mm | 2950*2270*2210 | |
