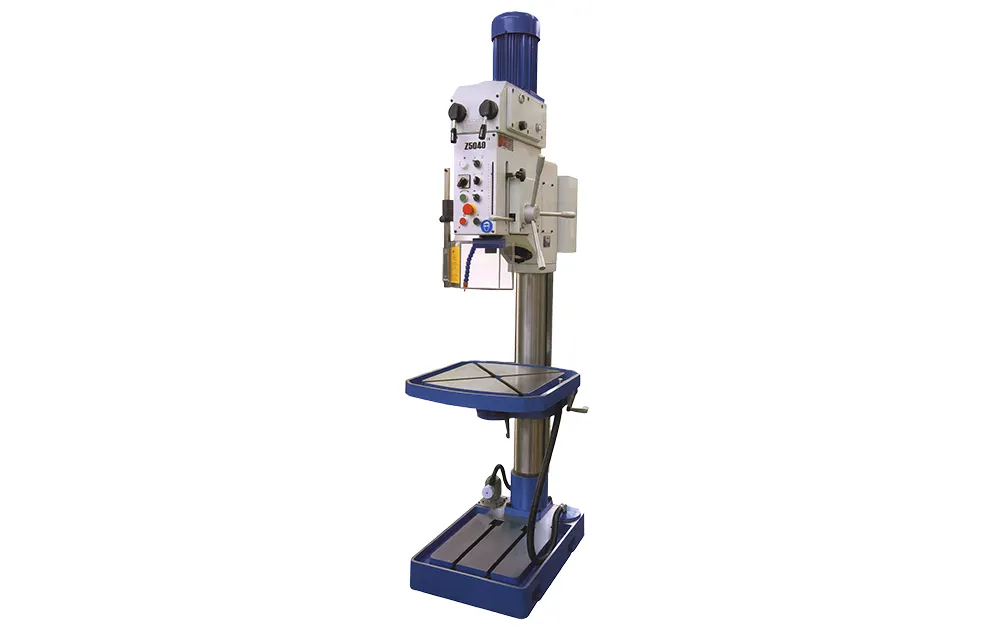

| Model | Z5040 (機械自動進給) | Z5040E (電磁自動進給) | Z5040T (機械自動進給) | Z5040ET (電磁自動進給) | |
| Pirce | $2165 | $2250 | $2400 | $2485 | |
| Max. drilling capacity | Φ40mm | ||||
| Threading in steel&last iron | M20&M24 | ||||
| Spindle travel | 180mm | ||||
| Spindle taper | M.T.#4 | ||||
| Spindle power feed | 2steps/0.1-0.2mm/rev | ||||
| Spindle speed | 50-1450rpm | ||||
| Width of T-slot | 18mm | ||||
| Max.distance from spindle axis to surface of column | 350mm | ||||
| Max.distance from spindle end to surface of table | 770mm | ||||
| Max.distance from spindle end to surface of base | 1210mm | ||||
| Diameter of column | 150mm | ||||
| Table size | |||||
| Base size | 730mm×500mm | ||||
| Motor power | 0.85kw/1.5kw | 0.85kw/1.5kw | |||
| N.W/G.W | 465kg/615kg | 510kg/650kg | |||
| Packing size(L*W*H) | 2270mm×690mm×1100mm | ||||
