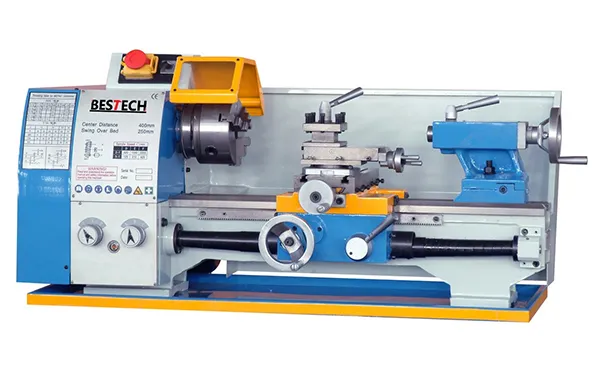

| Main Technical data | T250 | T250V | |
| Capacity | Max.swing over bed | Φ250mm | |
| Max.swing over cross slide | Φ140mm | ||
| Max. swing in gap | w/o gap | ||
| Distance between centers | 400/550/750 | ||
| Width of bed | 135mm | ||
| Spindle | Spindle bore | Φ21mm | Φ26mm |
Taper of spindle bore | M.T.#3 | M.T.#4 | |
Range of spindle speeds | 125---2000rpm | 50---2500rpm | |
| Threads | Threads Metric pitches | 0.1-2.5mm/19 kinds | 0.1-3.5mm/24kinds |
| Threads Imperial pitches | 8-56 T.P.I./18 kinds | ||
| Threads diametral pitches | - | ||
| Threads module pitches | - | ||
| Feeds | Max. travel of top slide | 68mm | |
| Max. travel of cross slide | 115mm | ||
| Cross feeds range | |||
| Longitudinal feeds range | 0.1-0.2mm/rev | ||
| Tailstock | Quill diameter | Φ30 | |
| Quill travel | 65mm | ||
| Taper of quill | M.T.#2 | ||
| Motor | Motor power | 550w | 750w |
| Coolant pump power | w/o pump | ||
| Packing&others | Tool section | 14x14 | |
| Packing size(L*W*H) | 1045/1155/1355X560X565mm mL：670X390X350 R：670X390X280mm | ||
| N.W/G.W | 105/109/119kg L stand：32/39Kg R stand：26/32Kg | ||
| Standard configuration | Optional configuration |
| 3 jaw chuckΦ125mm | Footstand |
| 4 jaw chuckΦ125mm | Chuck guard |
| Steady rest& follow rest | Leadscrew cover |
| Face plate | Tool post cover |
| Change gear sets | Live centerMT#2 |
| Splash guard | Drill chuck with arbor |
| Oil tray | |
| Dead center*2 |
