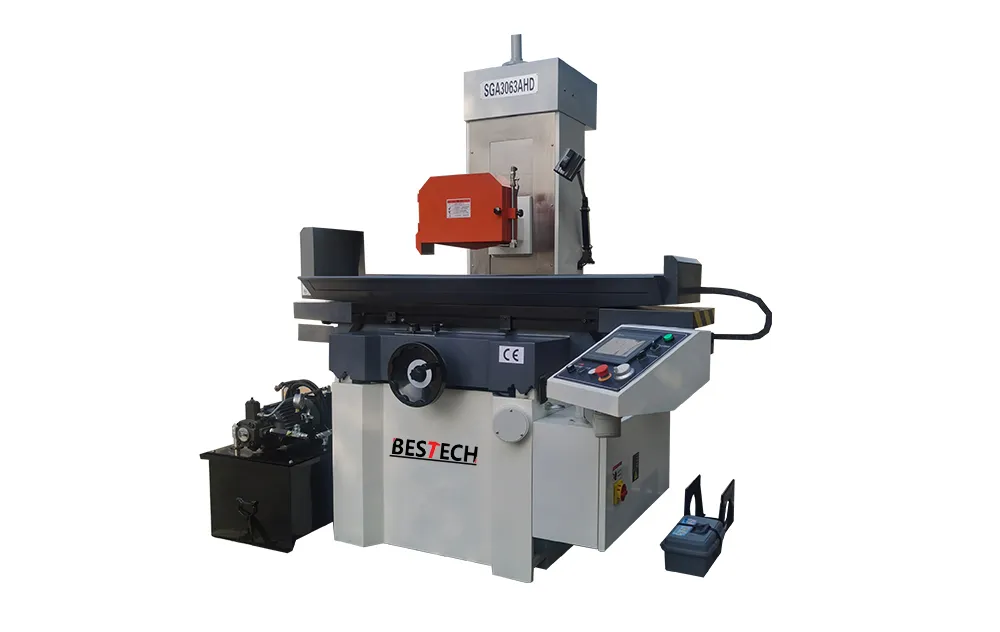

| Description | Unit | SGA3063AHD | |
| Maximum grinding range (L×W) | mm*mm | 800*340 | |
| Max.distance from spindle center to table | mm | 580 | |
| Maximum load-bearing capacity of the workbench (including suction cups) | Kg | 600 | |
| Table size(W×L) | mm*mm | 720*300 | |
| Size and quantity of T-shaped slots on the workbench | mm*N | 14*1 | |
| Max.longitudinal travel | mm | 810 | |
| Cross tranal | mm | 350 | |
| Sucker size | mm*mm | 700*300 | |
| Left and right feed of workbench: | |||
| Speed | m/min | 3-25 | |
| Handwheel per revolution | mm | ||
| Table transverse movement： | |||
| Step feed (mm/time) | 0.5-8 | ||
| continuous feed | mm/min | 0-800 | |
| Feed of handwheel(1 grid/1 circle) | mm | 0.02/4 | |
| Wheelhead vertical movement： | |||
| Upper and lower handwheel feed (1 grid/1 circle) | mm | 0.0001/0.001/0.01 | |
| Spindle up and down movement speed（50HZ/60HZ） | mm/min | 0-1200 | |
| Spindle and grinding wheel： | |||
| Spindle Motor | KW/HP | 4.0/4 | |
| Grinding wheel (OD×W×ID) Size | mm*mm*mm | 350*30*127 | |
| Grinding wheel speed (spindle speed) | rpm | 1400 | |
| Cooling pump motor | KW | 0.09 | |
| Hydranlic motor | KW | 2.2 | |
| Cross feed motor | KW | 0.09 | |
| Left and right feed motor | KW | ||
| Upper and lower feed motor | KW | 伺服servo 1.0 | |
| Net weight | Kg | ||
| Gross weight | Kg | 2500 | |
| Package dimensions（L×W×H) | mm*mm*mm | Based on actual measured dimensions | |
