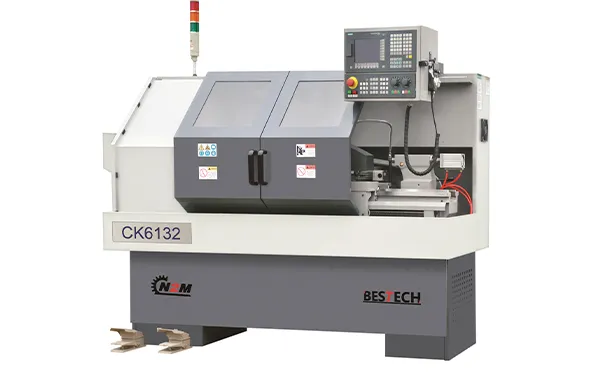

| Parameter | CK6132 | |
| Capacity | Max.swing over bed | Φ320mm |
| Max.swing over carriage | Φ150mm | |
| Max.cutting length | 500/750/1000mm | |
| Width of rail | 206mm | |
| Spindle | Spindle nose | A2-5 |
Spindle bore | Φ56mm | |
Taper of spindle bore | MT5 | |
Range of spindle speed | 150-2500rpm | |
Chuck | 6" | |
| Feeds | X axis travel | 180mm |
| Z axis travel | 500/750/1000mm | |
| X/Z Rapid speed | 4m/min、7m/min | |
| Turret | Type of turret | 電動 Electrical |
| Numbers of tool position | 4 | |
| Section of tool(Max) | 16x16mm | |

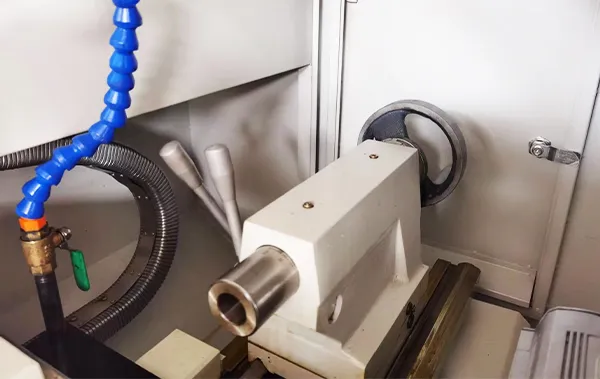

| Tailstock | Type of tailstock | 手動 Manual |
| Max.travel of tailstock sleeve | 100mm | |
| Diameter of tailstock sleeve | Φ32mm | |
| Taper of tailstock sleeve | MT3 | |
| Motor | Type of main motor | Frequency motor |
| Power of main motor | 2.2kw | |
| Power of pump | 180W | |
| Packing&others | Overall dimensions LxWxH | 1500/1720/2000×910×1666mm |
| Packing size | 1670/1890/2170×1060×1916mm | |
| N.W/G.W | 800/950,900/1050,1050/1200kg | |
| Standard Acc. | Optional Acc. |

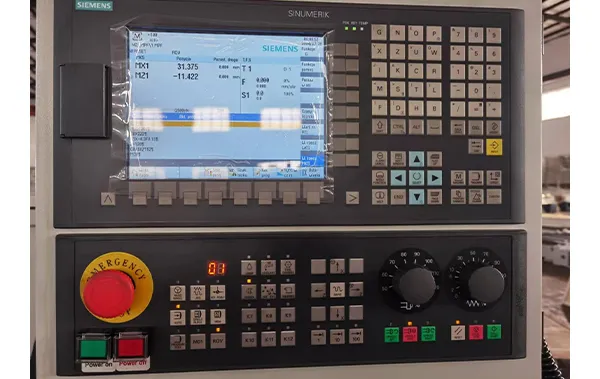

| GSK980TB3 controller | Siemens/Fanuc/Fagor/Syntec/KND/GSK controller system |

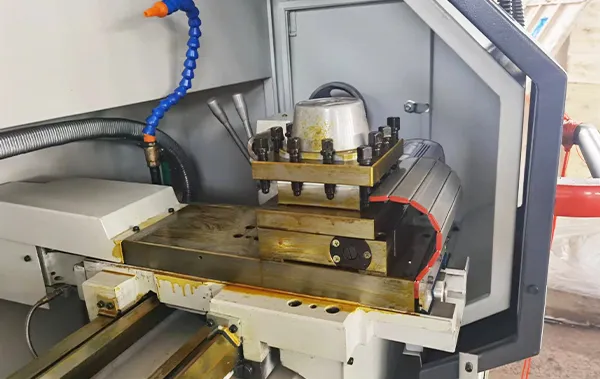

| 4 position eletrical turret | 6 station eletrical/hydraulic turret |
| 6” Manual chuck | Pneumatic or hydraulic chuck (Mainland /Taiwan) |
| Manual tailstock | 3.7kw Frenquency motor |
| 2.2kw Frenquency motor | Servo motor |
| Auto lubration and coolant | Hydraulic tailstock |
| Reduction sleeve | Spring collet |
| Dead center | Automatic bar-feeder |
| Toolbox | Gang-type |
| Parallels |
