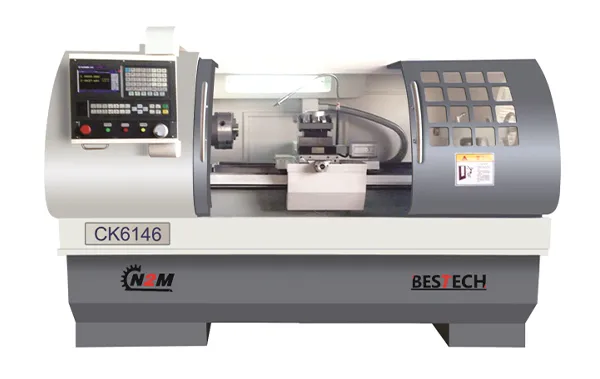

| Parameter | CK6146 | |
| Capacity | Max.swing over bed | Φ460mm |
| Max.swing over carriage | Φ285mm | |
| Max.distance between centers | 750/1000/1500mm | |
| Width of rail | 360mm | |
| Spindle | Spindle nose | A2-8 |
Spindle bore | Φ70mm | |
Taper of spindle bore | MT6 | |
Range of spindle speed | 150-1600rpm | |
Chuck | 10" | |
| Feeds | X axis travel | 270mm |
| Z axis travel | 750/1000/1500mm | |
| X/Z Rapid speed | 6m/min、8m/min | |
| Turret | Type of turret | 電動 Electrical |
| Numbers of tool position | 4/6/8 | |
| Section of tool(Max) | 25x25mm | |
| Tailstock | Type of tailstock | 手動 Manual |
| Max.travel of tailstock sleeve | 100mm | |
| Diameter of tailstock sleeve | Φ72mm | |
| Taper of tailstock sleeve | MT4 | |
| Motor | Type of main motor | 變頻電機Frequency motor |
| Power of main motor | 7.5kw | |
| Power of pump | 180W | |
| Packing&others | Overall dimensions LxWxH | 2205/2555/3100X1400X1655mm |
| Packing size | 2405/2755/3300X1600X1955mm | |
| N.W/G.W | 2750/3000,3100/3450,3350/3650kg | |
| Standard Acc. | Optional Acc. |
| GSK980TB3 controller | Siemens/Fanuc/Fagor/Syntec/KND/GSK controller system |
| 4 position eletrical turret | 6/8 station eletrical/hydraulic turret |
| 10” Manual chuck | Pneumatic or hydraulic chuck (Mainland /Taiwan) |
| Manual tailstock | Hydraulic tailstock |
| Frenquency motor | Servo motor |
| Auto lubration and coolant | Spring collet |
| Reduction sleeve | Automatic bar-feeder |
| Dead center | Gang-type |
| Toolbox | Living head |
| Parallels |
