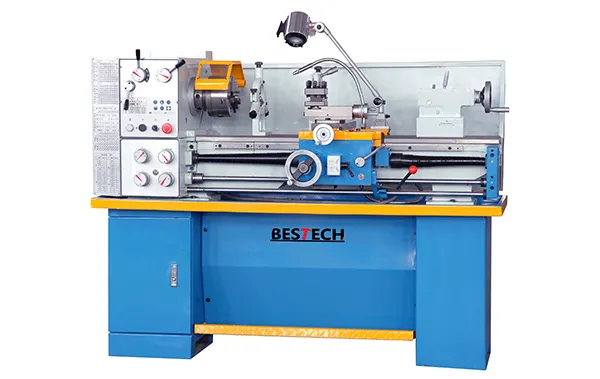

| Main Technical data | T310 | T330 | |
| Capacity | Max.swing over bed | Φ310mm | Φ330mm |
| Max.swing over cross slide | Φ190mm | Φ210mm | |
| Max. swing in gap | Φ450mm | Φ470mm | |
| Distance between centers | 750mm/910mm/1000mm | ||
| Width of bed | 181mm | ||
| Spindle | Spindle bore | Φ38mm | |
Taper of spindle bore | M.T.#5 | ||
Range of spindle speeds | 18steps 65-1810rpm | ||
| Threads | Threads Metric pitches | 0.4-7mm/ 32kinds | |
| Threads Imperial pitches | 4-60 T.P.I./36kinds | ||
| Threads diametral pitches | - | ||
| Threads module pitches | - | ||
| Feeds | Max. travel of top slide | 85mm | |
| Max. travel of cross slide | 170mm | ||
| Cross feeds range | 0.011-0.276mm/rev | 0.001-0.011"/rev | |
| Longitudinal feeds range | 0.053-1.291mm/rev | 0.002-0.051"/rev | |
| Tailstock | Quill diameter | Φ32 | |
| Quill travel | 100mm | ||
| Taper of quill | M.T.#3 | ||
| Motor | Motor power | 1.5KW | |
| Coolant pump power | 40W | ||
| Packing&others | Tool section | 16x16mm | |
| Packing info.（integrated） | 1480/1680/1860X750X1465mm 500/600kg, 520/620kg, 550/660kg | ||
| Packing info.（separated） | 1480/1680/1860X750X730mm 440/510kg, 460/530kg, 490/570kg | ||
| Packing info.（Stands） | L: 670X390X350mm, 32/39kg R: 670X390X280mm, 26/32kg | ||
| Standard configuration | Optional configuration |
| 3 jaw chuckΦ160mm | Coolant pump |
| 4 jaw chuckΦ200mm | Brake system |
| Steady rest& follow rest | Chuck guard |
| Working lamp | Leadscrew cover |
| Face plate | Tool post cover |
| Reduction sleeve,dead center | Live center |
| Footstand | Drill chuck with arbor |
| Casting iron stand | |
| Taper turning attachment | |
| Digital readout(2Axis/3Axis) | |
| Quick change tool post | |
| Thread dial indicator |
