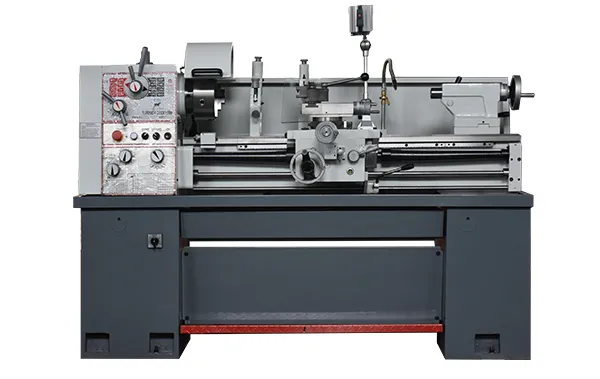

| Main Technical data | T360F | T400F | |
| Capacity | Max.swing over bed | Φ356mm | Φ400mm |
| Max.swing over cross slide | Φ220mm | Φ264mm | |
| Max. swing in gap | Φ506mm | Φ550mm | |
| Distance between centers | 1000mm | ||
| Width of bed | 206mm | ||
| Spindle | Spindle bore | Φ38mm(Φ51mm optional) | Φ51mm |
Taper of spindle bore | M.T.#5(M.T.#6 optional) | M.T.#6 | |
Range of spindle speeds | 16steps 45-1800rpm | ||
| Thread cutting | Threads Metric pitches | 0.4-7mm/ 42kinds | |
| Threads Imperial pitches | 4-112 T.P.I./40kinds | ||
| Threads diametral pitches | - | - | |
| Threads module pitches | - | - | |
| Range of feeds | Max. travel of top slide | 95mm | |
| Max. travel of cross slide | 180mm | ||
| Cross feeds range | 0.043-0.653mm/rev（Metric）0.0012-0.0294”/rev（Inch） | ||
| Longitudinal feeds range | 0.027-0.413mm/rev（Metric）/0.0004-0.01“/rev（Inch） | ||
| Tailstock | Diameter for tailstock sleeve | Φ45mm | |
| Max. travel for tailstock sleeve | 100mm | ||
| Taper of quill sleeve | M.T.#3 | ||
| Motor | Motor power | 1.5kw/2.4kw | |
| Coolant pump power | 40W | ||
| Packing&others | Tool section | 16x16mm | |
| Packing size(L*W*H) | 1935X750X1500mm | ||
| N.W/G.W | 700/800kg | 800/900kg | |
| Standard configuration | Optional configuration |
| 3 jaw chuckΦ160mm（T360F） | Chuck guard |
| 3 jaw chuckΦ200mm（T400F） | Leadscrew cover |
| 4 jaw chuckΦ200mm | Tool post cover |
| Steady rest& follow rest | Live center |
| Working lamp | Drill chuck with arbor |
| Face plateΦ250mm | Taper turning attachment |
| Change gear sets | Digital readout(2Axis/3Axis) |
| Reduction sleeve,dead center | Quick change tool post |
| Casting iron Footstand | Electromagnetic brake |
| Coolant pump | |
| Brake system | |
| Thread dial indicator |
