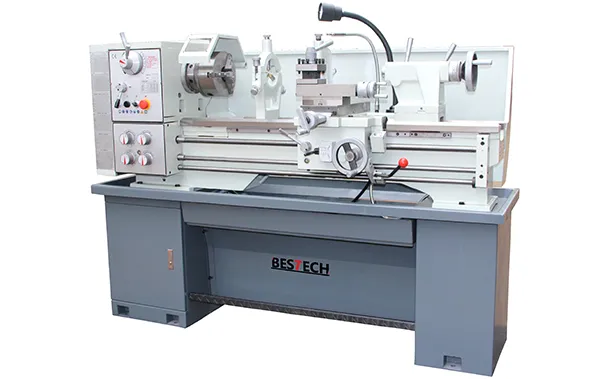

| Main Technical data | T400 | |
| Capacity | Max.swing over bed | Φ400mm |
| Max.swing over cross slide | Φ250mm | |
| Max. swing in gap | Φ520mm | |
| Distance between centers | 1000mm | |
| Width of bed | 218mm | |
| Spindle | Spindle bore | Φ52mm |
Taper of spindle bore | M.T.#6 | |
Range of spindle speeds | 65-1810rpm | |
| Thread cutting | Threads Metric pitches | 26kinds 0.4-7mm |
| Threads Imperial pitches | 34kinds 4-60T.P.I. | |
| Threads diametral pitches | - | |
| Threads module pitches | - | |
| Range of feeds | Max. travel of top slide | 127mm |
| Max. travel of cross slide | 210mm | |
| Cross feeds range | 0.011-0.276mm/rev | |
| Longitudinal feeds range | 0.0527-1.2912mm/rev | |
| Tailstock | Diameter for tailstock sleeve | Φ50mm |
| Max. travel for tailstock sleeve | 100mm | |
| Taper of quill sleeve | M.T.#4 | |
| Motor | Motor power | 2.2kw/(1.5&2.4kw double speed optional) |
| Coolant pump power | 40w | |
| Packing&others | Tool section | 16x16 |
| Packing info.（integrated） | 1930×820×1545mm，630/750kg | |
| Packing info.（separated） | 1930×760×930mm, 560/660kg | |
| Packing info.（Stands） | L:420×420×620mm,43/48kg R:320×420×620mm,29/34kg | |
| Standard configuration | Optional configuration |
| 3 jaw chuckΦ200mm | Chuck guard |
| 4 jaw chuckΦ200mm | Leadscrew cover |
| Steady rest& follow rest | Tool post cover |
| Working lamp | Live center |
| Face plate | Drill chuck with arbor |
| Change gear sets | Iron stand |
| Reduction sleeve&dead center | Taper turning attachment |
| Footstand | Digital readout(2Axis/3Axis) |
| Coolant pump | Quick change tool post |
| Brake system | |
| Thread dial indicator |
