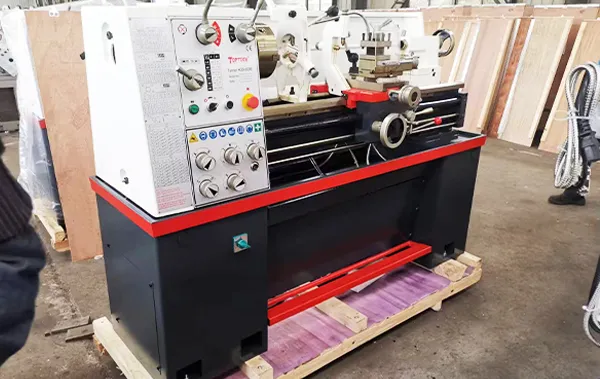

| Main Technical data | T400K | |
| Capacity | Max.swing over bed | Φ400mm |
| Max.swing over cross slide | Φ264mm | |
| Max. swing in gap | Φ550mm | |
| Distance between centers | 1000mm/1500mm | |
| Width of bed | 210mm/220mm | |
| Spindle | Spindle bore | Φ55mm |
Taper of spindle bore | M.T.#6 | |
Range of spindle speeds | （12）45-2000rpm | |
| Thread cutting | Threads Metric pitches | 0.8-14mm |
| Threads Imperial pitches | 2-28 T.P.I./40kinds | |
| Threads diametral pitches | - | |
| Threads module pitches | - | |
| Range of feeds | Max. travel of top slide | 105mm |
| Max. travel of cross slide | 160mm | |
| Cross feeds range | 0.005-0.22mm/rev | |
| Longitudinal feeds range | 0.02-0.85mm/rev | |
| Tailstock | Diameter for tailstock sleeve | Φ65mm |
| Max. travel for tailstock sleeve | 120mm | |
| Taper of quill sleeve | M.T.#4 | |
| Motor | Motor power | 2KW |
| Coolant pump power | 40w | |
| Packing&others | Tool section | 20x20mm |
| Packing size(L*W*H) | 1935/2435X750X1600mm | |
| N.W/G.W | 700/800kg,850/950kg | |
| Standard configuration | Optional configuration |
| 3 jaw chuckΦ200mm | Chuck guard |
| 4 jaw chuckΦ200mm | Leadscrew cover |
| Steady rest& follow rest | Tool post cover |
| Working lamp | Live center |
| Face plateΦ300mm | Drill chuck with arbor |
| Change gear sets | Taper turning attachment |
| Reduction sleeve,dead center | Digital readout(2Axis/3Axis) |
| Casting iron Footstand | Quick change tool post |
| Coolant pump | |
| Brake system | |
| Thread dial indicator |
