| Parameter | CK50L | |
| Capacity | Max.swing over bed | Φ540mm |
| Max.swing over carriage | Φ300mm | |
| Max.distance between centers | 750mm/1000mm | |
| Width of rail | 381mm | |
| Spindle | Spindle nose | A2-8 |
Spindle bore | Φ90mm | |
Taper of spindle bore | Φ95mm 1:20 | |
Range of spindle speed | 100-2000rpm | |
Chuck | 10" | |
| Feeds | X axis travel | 280mm |
| Z axis travel | 750mm/1000mm | |
| X/Z Rapid speed | 18/20m /min | |

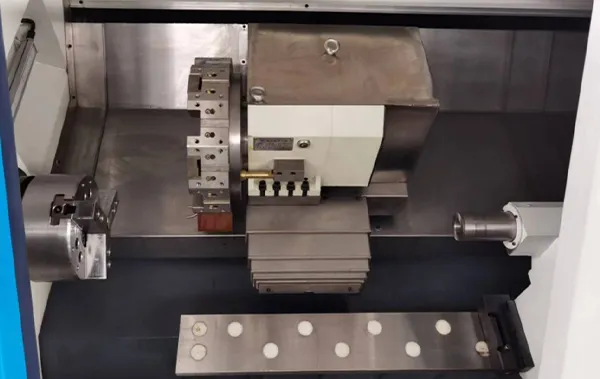

| Turret | Type of turret | Electrical電動/Hydraulic液壓optional |
| Numbers of tool position | 8 or 12 | |
| Section of tool(Max) | 25x25mm | |

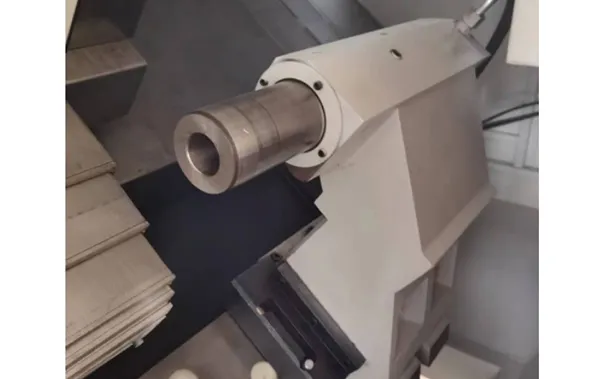

| Tailstock | Type of tailstock | 液壓Hydraulic |
| Max.travel of tailstock sleeve | 120mm | |
| Diameter of tailstock sleeve | Φ90mm | |
| Taper of tailstock sleeve | MT5 | |
| Motor | Type of main motor | Servo motor伺服主電機 |
| Power of main motor | 11kw(15kw optional) | |
| Power of pump | 370W | |
| Packing&others | Overall dimensions LxWxH | 3150/3400x1770x1765mm |
| Packing size | 3450/3700×2070x2065mm | |
| N.W/G.W | 3500/3800kg 3800/4200kg | |
| Packing size with conveyor | 4205/4455x2100x2200mm | |
| N.W/G.W with conveyor | 3940/4140kg 4140/4540kg | |
| Standard Acc. | Optional Acc. |

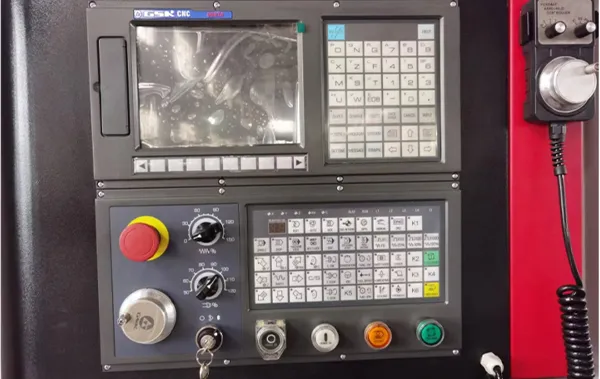

| GSK980TDI controller system | Siemens, Fanuc, Syntec, Fagor controller system |
| GSK feed motor and driver | 8/12 station Hydraulic turret |
| GSK servo spindle motor | Living turret |
| Cartridge type spindle | Spring collet |
| Taiwan screw and Linear guide rail | Automatic bar-feeder |
| Hydraulic 3-jaw chuck | Chip conveyor |
| 8 station electric turret | Tool measurement |
| Hydraulic tailstock | |
| Working light | |
| Automatic lubrication system | |
| Automatic cooling system | |
| Adjustable parallels | |
| Toolbox with kits |
