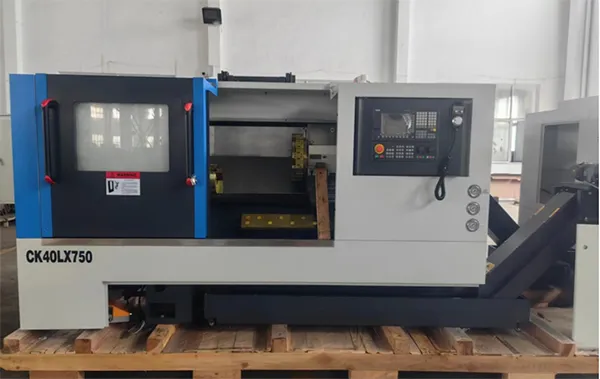

| Parameter | CK40L | |
| Capacity | Max.swing over bed | Φ400mm |
| Max.swing over carriage | Φ260mm | |
| Max.distance between centers | 500/750mm | |
| Width of rail | 320mm | |
| Spindle | Spindle nose | A2-6 |
| Spindle bore | Φ66mm | |
Taper of spindle bore | Φ70mm 1:20 | |
Range of spindle speed | 100-4000rpm | |
Chuck | 8" | |
| Feeds | X axis travel | 260mm |
| Z axis travel | 500/750mm | |
| X/Z Rapid speed | 18/20m/min | |
| Turret | Type of turret | Electrical電動(dòng)/Hydraulic液壓optional |
| Numbers of tool position | 8 or 12 | |
| Section of tool(Max) | 25x25mm | |

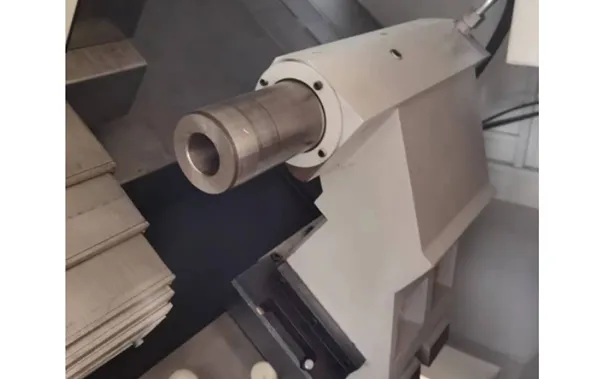

| Tailstock | Type of tailstock | 液壓Hydraulic |
| Max.travel of tailstock sleeve | 60mm | |
| Diameter of tailstock sleeve | Φ75mm | |
| Taper of tailstock sleeve | MT5 | |
| Motor | Type of main motor | Servo motor伺服主電機(jī) |
| Power of main motor | 7.5kw(11kw optional) | |
| Power of pump | 370W | |
| Packing&others | Overall dimensions LxWxH | 2720/2970x1545x1760mm |
| Packing size | 3020/3270x1845x2060mm | |
| N.W/G.W | 3000/3300kg 3400/3800kg | |
| Packing size with conveyor | 3775/4025x1845x2060mm | |
| N.W/G.W with conveyor | 3380/3680kg 3780/4180kg | |
| Standard Acc. | Optional Acc. |

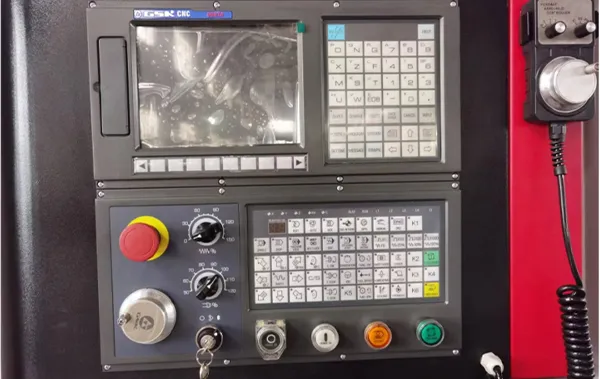

| GSK980TDI controller system | Siemens, Fanuc, Syntec, Fagor controller system |
| GSK feed motor and driver | 8/12 station Hydraulic turret |
| GSK servo spindle motor | Living turret |
| Cartridge type spindle | Spring collet |
| Taiwan screw and Linear guide rail | Automatic bar-feeder |
| Hydraulic 3-jaw chuck | Chip conveyor |
| 8 station electric turret | Tool measurement |
| Hydraulic tailstock | |
| Working light | |
| Automatic lubrication system | |
| Automatic cooling system | |
| Adjustable parallels | |
| Toolbox with kits |
