| Parameter | CK32L | CK36L | |
| Capacity | Max.swing over bed | Φ320mm | Φ360mm |
| Max.swing over carriage | Φ180mm | Φ210mm | |
| Max.distance between centers | 450mm | 500/750mm | |
| Width of rail | 284mm | ||
| Spindle | Spindle nose | A2-5 | A2-6 |
| Spindle bore | Φ56mm | Φ66mm | |
Taper of spindle bore | MT6 | Φ70mm 1:20 | |
Range of spindle speed | 150-4200rpm | 150-4000rpm | |
Chuck | 6" | 8" | |
| Feeds | X axis travel | 190mm | 210mm |
| Z axis travel | 450mm | 500/750mm | |
| X/Z Rapid speed | 20/20m/min | ||
| Turret | Type of turret | Electrical 電動/ Hydraulic 液壓optional | |
| Numbers of tool position | 8 | ||
| Section of tool(Max) | 20x20mm | 25x25mm | |
| Tailstock | Type of tailstock | 液壓Hydraulic | |
| Max.travel of tailstock sleeve | 80mm | ||
| Diameter of tailstock sleeve | Φ60mm | ||
| Taper of tailstock sleeve | MT4 | ||
| Motor | Type of main motor | Servo motor | |
| Power of main motor | 5.5KW | 7.5KW | |
| Power of pump | 370W | ||
| Packing&others | Overall dimensions LxWxH | 2650×1650×1750mm | 2700/3170x1650x1750mm |
| Packing size | 2900×1750×2100mm | 2900/3130x1750x2100mm | |
| N.W/G.W | 2200/2600kg | 2700/3100kg,3000/3400kg | |
| Packing size with conveyor | 4200x1750x2100mm | 4200/4350x1750x2100mm | |
| N.W/G.W with conveyor | 2560/2960kg | 3060/3460kg/3360x3760kg | |
| Standard Acc. | Optional Acc. |

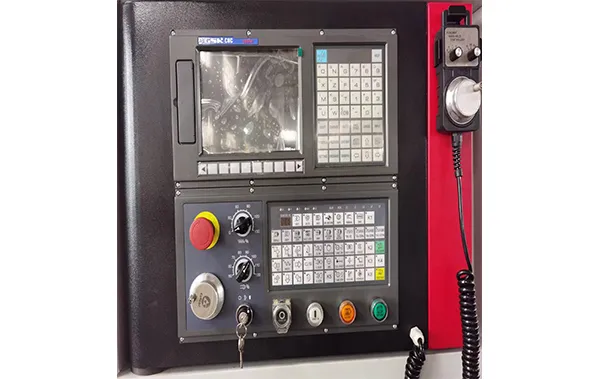

| GSK980TDI controller system | Siemens, Fanuc, Syntec, Fagor controller system |
| GSK feed motor and driver | 8/12 station Hydraulic turret |
| GSK servo spindle motor | Living turret |
| Cartridge type spindle | Spring collet |
| Taiwan screw and Linear guide rail | Automatic bar-feeder |
| Hydraulic 3-jaw chuck | Chip conveyor |
| 8 station electric turret | Tool measurement |
| Hydraulic tailstock | |
| Working light | |
| Automatic lubrication system | |
| Automatic cooling system | |
| Adjustable parallels | |
| Toolbox with kits |
