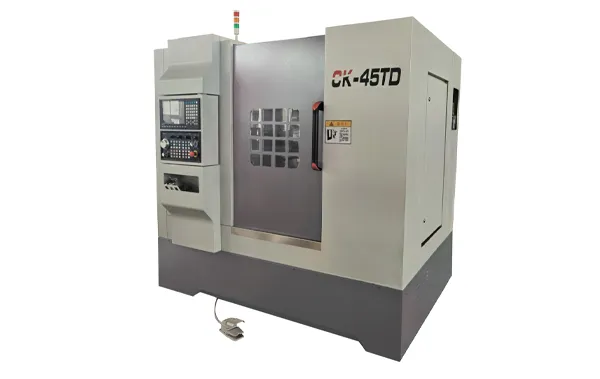

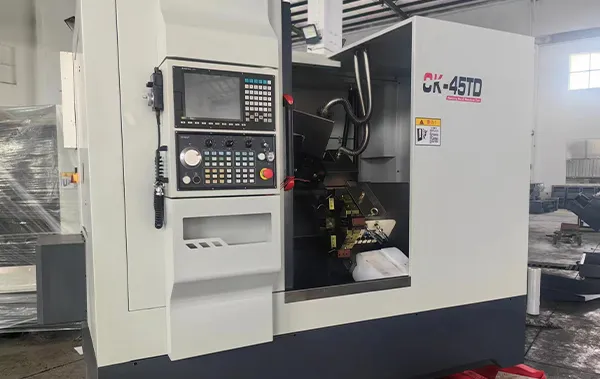

| Parameter | CK45T | |
| Capacity | Max.swing over bed | Φ450mm |
| Max.swing over carriage | Φ200mm | |
| Max.distance between centers | W/O tailstock 無尾座 | |
| Width of rail | 350mm | |
| Spindle | Spindle nose | A2-6 |
Spindle bore | Φ66mm | |
Taper of spindle bore | Φ70mm 1:20 | |
Range of spindle speed | 100-3500rpm | |
Chuck | 8" | |
| Feeds | X axis travel | 420mm |
| Z axis travel | 420mm/800mm | |
| X/Z Rapid speed | 16/18m /min | |
| Turret | Type of turret | Hydraulic servo turret |
| Numbers of tool position | 8 | |
| Section of tool(Max) | 25x25mm | |
| Tailstock | Type of tailstock | W/O tailstock 無尾座 |
| Max.travel of tailstock sleeve | W/O tailstock 無尾座 | |
| Diameter of tailstock sleeve | W/O tailstock 無尾座 | |
| Taper of tailstock sleeve | W/O tailstock 無尾座 | |
| Motor | Type of main motor | Servo motor伺服電機 |
| Power of main motor | 7.5kw | |
| Power of pump | 370W | |
| Packing&others | Overall dimensions LxWxH | 2290/2660x1735x1865mm |
| Packing size | 2590/2960x2035x2165mm | |
| N.W/G.W | 2590/2960x2835x2165mm | |
| Packing size with conveyor | 1900/2200kg,2500/2800kg | |
| N.W/G.W with conveyor | 2300/2600kg，2900/3200kg | |
| Standard Acc. | Optional Acc. |
| KND 1000Tfi controller system | Siemens, Fanuc, Syntec, Fagor Controller |
| KND feed motor and driver | 4 station live head |

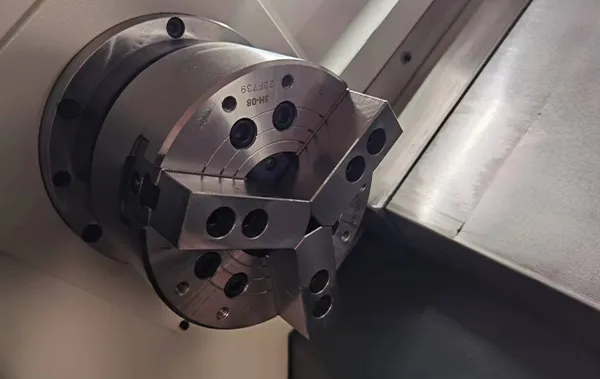

| Hydraulic 3 jaw chuck | 4+4 station live head with Y axis |
| 7.5kw KND servo spindle motor | 12 station driven tool turret |
| X axis with NTN bearings | Living turret |
| 8 station Hydraulic servo turret | Gang tool |
| Taiwan screw and Linear guide rail | Chip conveyor |
| Working light | Spring collet |
| Automatic lubrication system | Automatic bar-feeder |
| Automatic cooling system | Tool measurement |
| Adjustable parallels |
