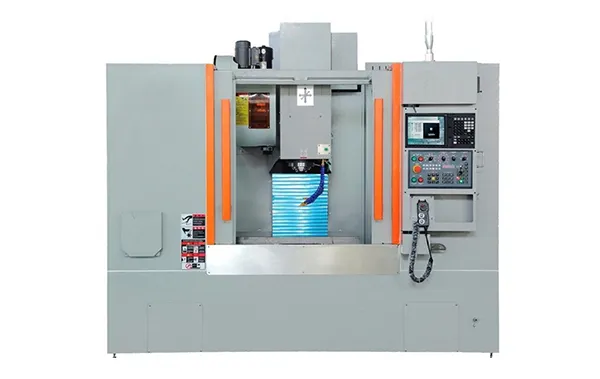

| Parameter | VMC640 | |
| Work area | X/ Y/ Z axis travel | 600mm/400mm/350mm |
| Spindle nose to table | 135-485mm | |
| Spindle center to column | 420mm | |
| Table data | Table size | 700mmx420mm |
T shaft groove(WxQtyxPitch) | 14mmx3x125 | |
Max table load | 300kg | |
| Spindle | Spindle taper | BT30 |
| Spindle Speed | 15000/20000/24000rpm | |
| Drive mode | Direct Drive直連式 | |
| Feed | X/Y/Z Axis rapid traverse | 48 / 48 / 48 m/min |
| X/Y/Z Ball screw (Diaxpitch) | 32x16 | |
| X/Y/Z Linear guide rail STD | 30/30/35mm | |
| X/Y/Z Axis cutting feed rate | 15 | |
| Positioning accuracy(ISO) | 0.005 | |
| Re-Positioning accuracy (ISO) | 0.004 | |
| Tool magazine | Tool Magazine form | Arm Type夾臂式 |
| Tool Mag capacity&shank | 16pcs/BT30 | |
| Max tool diameter (full) | 50mm | |
| Max tool diameter (not full) | 120mm | |
| Max,tool length | 250mm | |
| Max,tool weight | 3Kg | |
| Motor | Spindle motor | 3.7-5.5KW |
| X/Y/Z Axis motor torque | 13.7NM/13.7NM/22.5NM(剎車) | |
| Power capacity | 12kw | |
| Coolant pump | 550W | |
| Lubriation pump | 20w | |
| Packing&others | Air pressure required | 6kgf/cm2 |
| Machine dimensions(LxWxH) | 1800x1800x2200mm | |
Machine weight | 3100 kg | |
| Standard ACC. | Optional ACC. |
| X/Y/Z Linear guide rail(Taiwan) | Fanuc，Mitsubishi, Siemens controller system etc. |
| Integral shield | Tiled chain chip conveyor |
| Triaxial slideway telescopic protective cover | Spiral chip conveyor |
| Tool box and adjustabletool | X/Y Linear guide rail(Taiwan)Z Axis Rigid rail |
| Machine alarm system | Automatic tool measuring |
| Tool air-liquid cooling system | The fourth Axis |
| Penumatic tool changing system | Oil-mist collector |
| Machine tool working lamp | Oil-water separating installation |
| Heat exchanger | Lateral punching device |
| Transformer | Automatic door |
| CNC controller system | Ethernet and memory card high speed program execution |
| Spindle oil cooler | |
| Tool magazine | |
| Rigid tapping | |
| Horizontal adjustment screw and block | |
| Automatic lubrication device | |
| Electronic handle wheel | |
| Network synchronous processing | |
| Air pressure detection |
