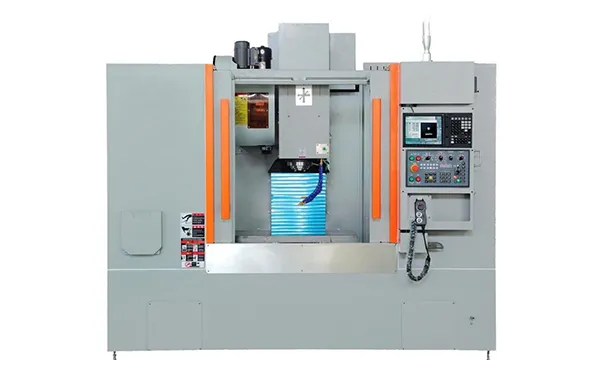

| Parameter | VMC850 | |
| Work area | X/ Y/ Z axis travel | 800 / 500 / 500 mm |
| Spindle nose to table | 130-630 mm | |
| Spindle center to column | 530 mm | |
| Table data | Table size | 500x1000mm |
T shaft groove(WxQtyxPitch) | 18mmx5x90mm | |
Max table load | 500 kg | |
| Spindle | Spindle taper | BT40Φ150mm |
| Spindle Speed | 10000(12000) | |
| Drive mode | Belt皮帶/Direct直連 | |
| Feed | X/Y/Z Axis rapid traverse | 48/48/48rpm |
| X/Y/Z Ball screw (Diaxpitch) | 36x16 | |
| X/Y/Z Linear guide rail STD | 35/35/35(TAIWAN) | |
| X/Y/Z Axis cutting feed rate | 10 m/min | |
| Positioning accuracy(ISO) | 0.006 | |
| Re-Positioning accuracy (ISO) | 0.005 | |

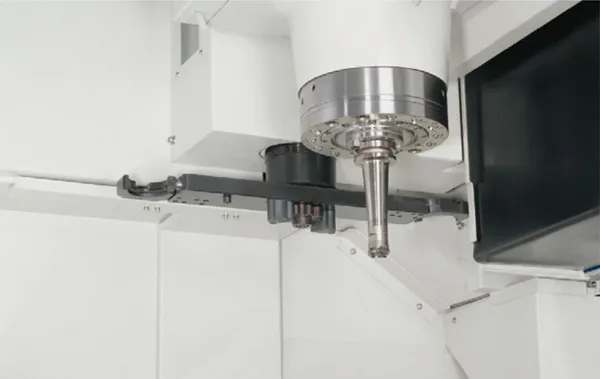

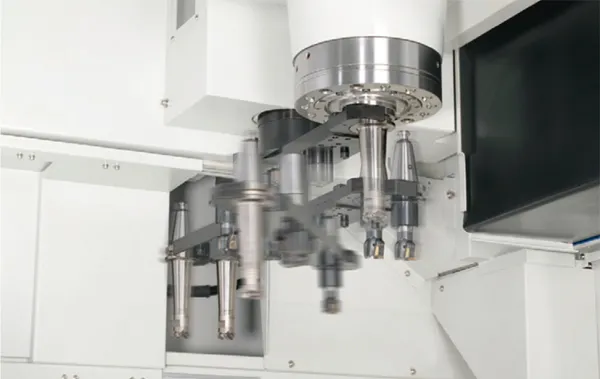

| Tool magazine | Tool Magazine form | 圓盤DISC |
| Tool Mag capacity&shank | 24 Pcs /BT40 | |
| Max tool diameter (full) | 60mm | |
| Max tool diameter (not full) | 120mm | |
| Max,tool length | 350 mm | |
| Max,tool weight | 8 Kg | |
| Motor | Spindle motor | 5.5-7.5Kw |
| X/Y/Z Axis motor torque | 15nm/18nm/28nm | |
| Power capacity | 16kw | |
| Coolant pump | 550w | |
| Lubriation pump | 20 KVA | |
| Packing&others | Air pressure required | 6 kgf / cm2 |
| Machine dimensions(LxWxH) | 2400x2200x2500mm | |
Machine weight | 4200kg | |
| Standard ACC. | Optional ACC. |
| X/Y/Z Linear guide rail(Taiwan) | Fanuc，Mitsubishi, Siemens controller system etc. |
| Integral shield | Tiled chain chip conveyor |
| Triaxial slideway telescopic protective cover | Spiral chip conveyor |
| Tool box and adjustable tool | X/Y Linear guide rail(Taiwan)Z Axis Rigid rail |
| Machine alarm system | Automatic tool measuring |
| Tool air-liquid cooling system | The fourth Axis |
| Penumatic tool changing system | Oil-mist collector |
| Machine tool working lamp | Oil-water separating installation |
| Heat exchanger | Lateral punching device |
| Transformer | Automatic door |
| CNC controller system | Ethernet and memory card high speed program execution |
| Spindle oil cooler | |
| Tool magazine | |
| Rigid tapping | |
| Horizontal adjustment screw and block | |
| Automatic lubrication device | |
| Electronic handle wheel | |
| Network synchronous processing | |
| Air pressure detection |
