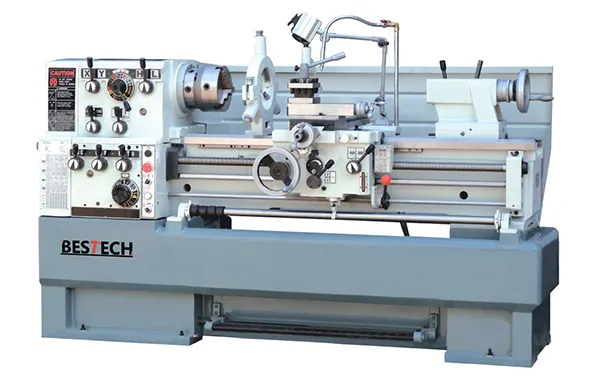

| Main Technical data | T410（B） | T460（B) | |
| Capacity | Max.swing over bed | Φ410mm | Φ460mm |
| Max.swing over cross slide | Φ224mm | Φ274mm | |
| Max. swing in gap | Φ640mm | Φ690mm | |
| Distance between centers | 1000mm/1500mm/2000 | ||
| Width of bed | 300mm | ||
| Spindle | Spindle bore | Φ58mm(Φ80mm) | |
Taper of spindle bore | M.T.#6（M.T.#7） | ||
Range of spindle speeds | 12 steps 25-2000rpm（25-1700rpm） | ||
| Thread cutting | Threads Metric pitches | 0.1-14mm /41kinds | |
| Threads Imperial pitches | 2-112 T.P.I./60kinds | ||
| Threads diametral pitches | 4-112 D.P. /50kinds | ||
| Threads module pitches | 0.1-7M.P./ 34kinds | ||
| Range of feeds | Max. travel of top slide | 128mm | |
| Max. travel of cross slide | 285mm | ||
| Cross feeds range | 42kinds，0.014-0.784mm/rev | ||
| Longitudinal feeds range | 42kinds，0.031-1.7mm/rev | ||
| Tailstock | Diameter for tailstock sleeve | Φ60mm | |
| Max. travel for tailstock sleeve | 130mm | ||
| Taper of quill sleeve | M.T.#4 | ||
| Motor | Motor power | 5.5kw | |
| Coolant pump power | 90W | ||
| Packing&others | Tool section | 25x25mm | |
| Packing size(L*W*H) | 2250/2800x3300x1120x1700mm | ||
| N.W/G.W | 1680/1980kg,1810//2115kg,2965/2295kg | ||
| Standard configuration | Optional configuration |
| Φ58mm spindle bore | Φ80mm spindle bore |
| 3 jaw chuckΦ200mm | Chuck guard |
| 4 jaw chuckΦ250mm | Leadscrew cover |
| Steady rest& follow rest | Tool post cover |
| Working lamp | Live center |
| Face plate | Drill chuck with arbor |
| Casting iron stand | Taper turning attachment |
| Coolant pump | Digital readout(2Axis/3Axis) |
| Brake system | Quick change tool post |
| Rapid feed system |
